ME 1100 Vertical Mixer

The ME 1100 series of the high shear vertical mixers present a solution for the processes of dispersion, emulsifying, homogenisation and disintegration of solids in a wide range of products in the food-processing, cosmetics, pharmaceutical and fine chemistry industries.

These mixers are intended for work under the atmospheric pressure and with the products of either high or low viscosity. The mixers are recommended to work with anchor type agitators if the application involves highly viscous media.

Request information

ME 1100 Vertical Mixer

Operating principle

The high speed and adjusted tolerances between the rotor and the stator result in high suction potential, the product is suctioned from the bottom of the tank and driven to the centre of the head.
The product is suctioned from the lower part of the head and the rotor thrusts it radially.
Passing through the openings of the stator the product is mechanically sheared. the particles are sheared by the rotor at 20 m/s. And finally the product is hydraulically sheared while leaving the stator through the slots at a high speed . At the same time the product returns to the working head ensuring the mixing circle and generating a strong circulation inside the tank. The combination of the vertical suction and radial thrust results in a circulation flow.
If the size and the power of the mixer are correctly selected, the ingredients contained in the tank pass through the working head hundreds of times that promotes a progressive and uniform homogenization.
Other important feature is the possibility to minimize the aeration of the product.

Design and features

High shear, particle size reduction to less than 100 microns.
V-ring.
Slotted head (standard).
Possibility to replace the stator and the bushing without disassembling the mixer.
Various types of interchangeable heads.
Motors: IEC B5, IP55, F-class insulation.

Materials

Parts in contact with the product: AISI316L
Guide bushing: PTFE
V-ring: NBR

Options

DIN2632-PN10 flange or rectangular flange for the assembly on a tank.
Circulation propeller.
Downthrust propeller.
Peak friction bushing and ceramic lined shaft for abrasive media.

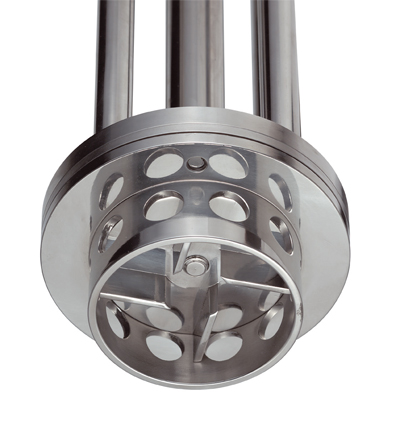

Disintegrating head.
Fine screen head.
Intermediate flange for long mixers.
SLIM system.
Upper suction head.
Motor shroud.
Other motor protections.

Documents

Operating principle

The high speed and adjusted tolerances between the rotor and the stator result in high suction potential, the product is suctioned from the bottom of the tank and driven to the centre of the head.
The product is suctioned from the lower part of the head and the rotor thrusts it radially.
Passing through the openings of the stator the product is mechanically sheared. the particles are sheared by the rotor at 20 m/s. And finally the product is hydraulically sheared while leaving the stator through the slots at a high speed . At the same time the product returns to the working head ensuring the mixing circle and generating a strong circulation inside the tank. The combination of the vertical suction and radial thrust results in a circulation flow.
If the size and the power of the mixer are correctly selected, the ingredients contained in the tank pass through the working head hundreds of times that promotes a progressive and uniform homogenization.
Other important feature is the possibility to minimize the aeration of the product.

Materials and Options

Parts in contact with the product: AISI316L
Guide bushing: PTFE
V-ring: NBR

DIN2632-PN10 flange or rectangular flange for the assembly on a tank.
Circulation propeller.
Downthrust propeller.
Peak friction bushing and ceramic lined shaft for abrasive media.
Disintegrating head.
Fine screen head.
Intermediate flange for long mixers.
SLIM system.
Upper suction head.
Motor shroud.
Other motor protections.

Document № FT.ME 1100.1_ES
Title Mixer Vertical ME 1100
File type .pdf
Summary La gama de mixers verticales de alto cizallamiento ME-1100, presenta una solución para la dispersión, emulsión, homogeneización y desintegración de sólidos para una gran cantidad de productos en la industria alimentaria, cosmética, farmacéutica y química fina.
    Download
  • E-mail
Document № FT.ME 1100.1_EN
Title Vertical Mixer ME 1100
File type .pdf
Summary The ME 1100 series of the high shear vertical mixers present a solution for the processes of dispersion, emulsifying, homogenisation and disintegration of solids in a wide range of products in the food-processing, cosmetics, pharmaceutical and fine chemistry industries.
    Download
  • E-mail
Document № FTME 1100 1_FR
Title Mixer Vertical ME 1100
File type .pdf
Summary La gamme de mixers verticaux de haut cisaillement ME-1100 présente une solution pour la dispersion, l'émulsion, l'homogénéisation et la désintégration de solides pour une grande quantité de produits dans l'industrie alimentaire, cosmétique, pharmaceutique et de la chimie fine.
    Download
  • E-mail
Document № FT ME 1100_IT
Title Mixer verticale ME 1100
File type .pdf
Summary La gamma dei mixer verticali ad alto potere di taglio ME-1100, presenta una soluzione per la dispersione, emulsione, omegeinizzazione e disintegrazione dei slidi per una grande quantità di prodotti nell'industria alimentare, cosmetica, farmaceutica e chimica fine.
    Download
  • E-mail
Document № FT.ME 1100.1 _PT
Title Mixer Vertical ME-1100
File type .pdf
    Download
  • E-mail
Document № FT ME 1100_DE
Title Vertikalmischer ME 1100
File type .pdf
Summary Die vertikalen Hochleistungs-Schneidmischer ME-1100 werden in der Lebensmittel-, Kosmetik-, Pharma- und feinchemischen Industrie für das Dispergieren, Emulsionieren, Homogenisieren und Zerkleinern von Festkörpern einer Vielzahl von Produkten eingesetzt.
    Download
  • E-mail
Document № FT ME 1100_DA
Title Vertikal mixer ME 1100
File type .pdf
Summary ME-1100 serien af high shear vertikal mixere kan anvendes i en række processer indenfor dispergering, emulgering, homogenisering og nedbrydning af tørstoffer i væske i et bredt område af produkter indenfor fødevare, kosmetik og farmaceutisk industri.
    Download
  • E-mail
Document № FT ME 1100_RU
Title Миксер вертикальный ME 1100
File type .pdf
Summary Миксер повышенной резки серии МЕ-1100 представляет собой решение для процессов диспергации, эмульсификации, гомогенизации и дезинтеграции твёрдых механических включений в пищевой, косметической, фармацевтической промышленности, а также в промышленности тонкой химии.
    Download
  • E-mail
Document № FT.ME 1100.1_CN
Title 立式混合器 ME 1100
File type .pdf
Summary ME-1100 系列立式高剪切力混合器,提供了食品生产工艺,化妆品,制药和精细化 工生产上需要对固体进行,分散,均质,分裂和乳化的可能。
    Download
  • E-mail
Document № 03.100.30.04ES
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO MIXER VERTICALMIXER ME-1100
File type .pdf
    Download
  • E-mail
Document № 03.100.30.04EN
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS VERTICAL MIXER ME-1100
File type .pdf
    Download
  • E-mail
Document № 03.100.30.04FR
Title INSTRUCTIONS D’INSTALLATION, DE SERVICE ET DE MAINTENANCE MIXER VERTICAL ME-1100
File type .pdf
    Download
  • E-mail
Document № 03.100.30.04RU
Title ИНСТРУКЦИИ ПО УСТАНОВКЕ, ЭКСПЛУАТАЦИИ И ОБСЛУЖИВАНИЮ ВЕРТИКАЛЬНЫЙ МИКСЕР ME-1100
File type .pdf
    Download
  • E-mail
