KIBER NTE Progressive Cavity Pump

KIBER NTE Progressive Cavity Pump

  1. Home
  2. /
  3. Products
  4. /
  5. Pumps
  6. /
  7. Positive displacement pumps
  8. /
  9. Progressive Cavity Pump KIBER NTE
  • Progressive Cavity Pump
  • Progressive Cavity Pump
  • Progressive Cavity Pump

Request information

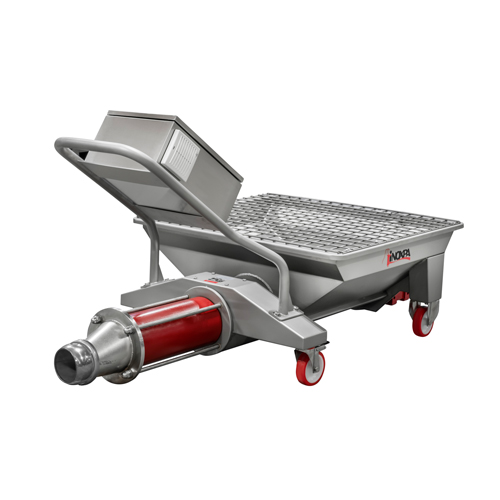

KIBER NTE Progressive Cavity Pump

The compact and robust design of the Kiber NTE progressive cavity pump makes it ideal for transferring whole or destemmed grapes. And due to its design it can be installed right under the destemmer.
It also can be used for the process of devatting.

Request information

KIBER NTE Progressive Cavity Pump

Operating principle

INOXPA is a progressive cavity pump supplier, offers Kiber NTE progressive cavity pump, ideal for pumping grapes.

Friction between the rotor and the stator creates vacuum in the inlet area thereby helping the entry of the product into the pump. The turning motion of the rotor makes the cavities between the rotor and the stator move forward and transport the product to the outlet.

Design and features

Highly versatile.
Easy to clean.

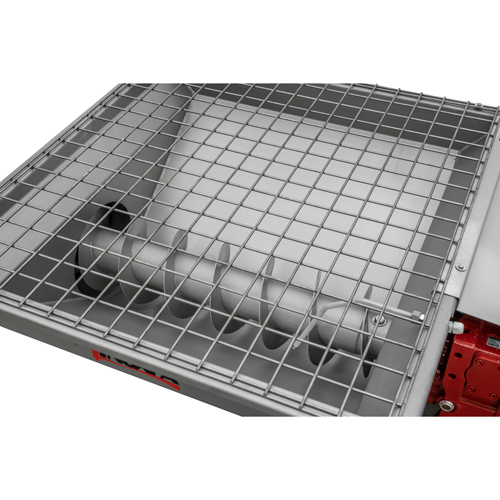

Hopper with drain.
Robust construction.
Helical-bevel gear unit.

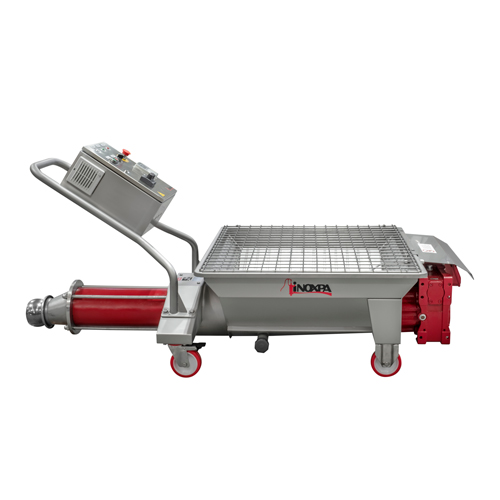

Pump mounted on cart.
EC electric panel with ON/OFF switch, inverter and emergency stop push button.
Wheels with brake.
Red painted RAl3003.

Materials

Parts in contact with the product AISI 316L (1.4404)
Other steel parts AISI 304 (1.4301)
Lantern Carbon steel
Stator NBR (specific composition for this application)
Sealing PTFE packing

Options

Pump without handle and without control panel.
Liquid detector: Max / Min.
Remote control.
Electromagnetic brake in motor.
St.St. control panel.
Frequency converter.
Other connections.

Documents

Data sheet (6)
Instruction manual (3)
3D CAD (1)
Operating principle

INOXPA is a progressive cavity pump supplier, offers Kiber NTE progressive cavity pump, ideal for pumping grapes.

Friction between the rotor and the stator creates vacuum in the inlet area thereby helping the entry of the product into the pump. The turning motion of the rotor makes the cavities between the rotor and the stator move forward and transport the product to the outlet.

Materials and Options

Parts in contact with the product AISI 316L (1.4404)
Other steel parts AISI 304 (1.4301)
Lantern Carbon steel
Stator NBR (specific composition for this application)
Sealing PTFE packing

Pump without handle and without control panel.
Liquid detector: Max / Min.
Remote control.
Electromagnetic brake in motor.
St.St. control panel.
Frequency converter.
Other connections.

Documents
Document № FTeNTE.3_ES
Title Bomba Helicoidal Kiber NTE
File type .pdf
Summary La bomba Kiber NTE es de diseño compacto y robusto, indicada para el trasiego de vendimia entera o despalillada.
    Download
    • E-mail
Document № FTeNTE.3_EN
Title Progressive Cavity Pump Kiber NTE
File type .pdf
Summary The compact and robust design of the Kiber NTE pump makes it ideal for transferring whole or destemmed grapes.
    Download
    • E-mail
Document № FTeNTE.3_FR
Title Pompe à Rotor Escentré Kiber NTE
File type .pdf
Summary La pompe Kiber NTE est de conception robuste, adaptée pour le transfert de vendange entière ou égrappée.
    Download
    • E-mail
Document № FTeNTE.3_IT
Title Pompa Elicoidale Monovite Kiber NTE
File type .pdf
Summary La pompa Kiber NTE ha una forma compatta e robusta, specifica per effettuare il trasferimento dell'uva intera o diraspata.
    Download
    • E-mail
Document № FTeNTE.3_DE
Title Exenterschneckenpumpe Kiber NTE
File type .pdf
Summary Das kompakte und robuste Design der Kiber NTE Pumpe macht sie ideal für die Beförderung ganzer oder abgebeerter Trauben
    Download
    • E-mail
Document № FTeNTE.3_RU
Title Винтовой Насос Kiber NTE
File type .pdf
Summary Винтовой насос Kiber NTE с компактной и прочной конструкцией предназначен для перекачивания цельного или очищенного винограда.
    Download
    • E-mail
Document № 01.621.30.00ES_RevC
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO BOMBA KIBER NTE / NTEA
File type .pdf
Summary Este manual contiene información sobre la recepción, instalación, operación, montaje, desmontaje y mantenimiento para la bomba kiber NTE/NTEA.
    Download
    • E-mail
Document № 01.621.30.00EN_RevC
Title INSTALLATION, SERVICE AND INSTRUCTIONS KIBER NTE / NTEA PUMP
File type .pdf
Summary This manual contains information about the receipt, installation, operation, assembly, disassembly and maintenance of the Kiber NTE/NTEA pump.
    Download
    • E-mail
Document № 01.621.30.00FR_RevC
Title INSTRUCTIONS D’INSTALLATION, SERVICE ET MAINTENANCE POMPE KIBER NTE / NTEA
File type .pdf
Summary Ce manuel contient de l’information concernant la réception, l’installation, le fonctionnement, le montage, le dépose et l’entretien de la pompe Kiber NTE/ NTEA.
    Download
    • E-mail
Document № 621.KIBER_NTE.rar
Title 621.KIBER_NTE.rar
File type .rar
    Download
    • E-mail
