LR/LM Side Entry Agitator

LR/LM Side Entry Agitator

  1. Home
  2. /
  3. Products
  4. /
  5. Mixing
  6. /
  7. Agitators
  8. /
  9. Side Entry Agitator LR/LM
  • Side Entry Agitator
  • Side Entry Agitator
  • Side Entry Agitator
  • Side Entry Agitator

Request information

LR/LM Side Entry Agitator

The bottom side entry agitators are used in process and storage tanks in the applications of the food-processing industry.
The main application is agitation of low viscosity products like wine, oil, milk, beer, alcohol, etc. in large volume tanks.

Request information

LR/LM Side Entry Agitator

Operating principle

The LR agitators are driven by geared motors and the LM agitators are provided with direct motors.
These agitators are installed in a slanted position.

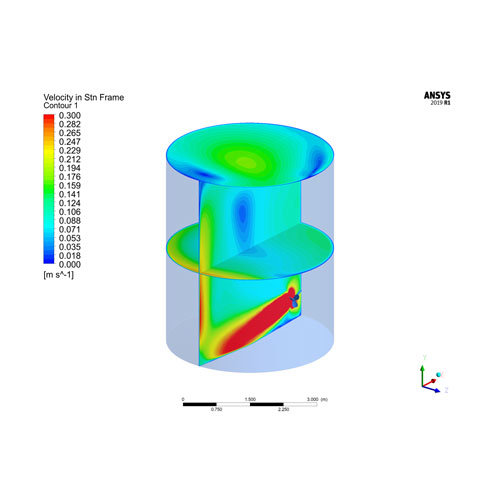

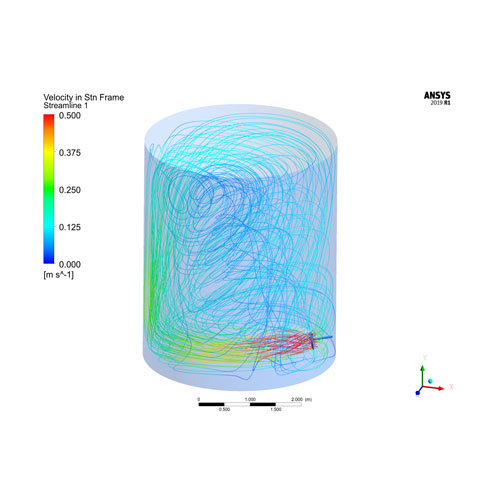

The rotation of the propeller creates a flow that impells the product to the bottom of the tank and then raises up to the surface  along the wall opposite to the agitator. The effect is promoted if the bottom is curved.
The agitator is installed decentralized to enhance the circular flow. Thus a complete homogenization of the product is achieved.

Design and features

Side-entry agitator.
Internal mechanical seal: EN12756 (DIN 24960 L1K).
Economical for use in large volume tanks.
Robust and sanitary design.
Easy maintenance.
The propeller fixed to the shaft by means of a threaded connection and a gasket.
Helical geared motors with food-grade oil.
Motor: 3 ph, 230/400 V, 50 Hz, IP55, 1500 rpm.
Marine propeller (Type10).

Materials

Parts in contact with the product AISI 316L
Lantern and bearing support GG 15
Mechanical seal C/SiC/EPDM
Gaskets EPDM
Surface finish Ra ≤ 0,8 μm

Options

SiC/SiC mechanical seal.
Double mechanical seal.
Gaskets: FPM.
Safety packing.
High flow (Type 19) propeller for LR agitators.
St.St. motor shroud.
Motors with other protections.
ATEX (LR) model available.

Documents

Data sheet (8)
Instruction manual (4)
Operating principle
The LR agitators are driven by geared motors and the LM agitators are provided with direct motors.
These agitators are installed in a slanted position.
The rotation of the propeller creates a flow that impells the product to the bottom of the tank and then raises up to the surface  along the wall opposite to the agitator. The effect is promoted if the bottom is curved.
The agitator is installed decentralized to enhance the circular flow. Thus a complete homogenization of the product is achieved.
Materials and Options

Parts in contact with the product AISI 316L
Lantern and bearing support GG 15
Mechanical seal C/SiC/EPDM
Gaskets EPDM
Surface finish Ra ≤ 0,8 μm

SiC/SiC mechanical seal.
Double mechanical seal.
Gaskets: FPM.
Safety packing.
High flow (Type 19) propeller for LR agitators.
St.St. motor shroud.
Motors with other protections.
ATEX (LR) model available.

Documents
Document № FT.LR_LM.3_ES
Title Agitador Lateral de Fondo LM/LR
File type .pdf
Summary Los agitadores laterales de fondo se utilizan en tanques de proceso y almacenamiento en la industria alimentaria.
    Download
    • E-mail
Document № FT.LR_LM.3_EN
Title Bottom Side Entry Agitator LR/LM
File type .pdf
Summary The bottom side entry agitators are used in process and storage tanks in the applications of the food-processing industry.
    Download
    • E-mail
Document № FT.LR_LM.3_USA
Title Bottom Side Entry Agitator LR/LM
File type .pdf
Summary The bottom side entry agitators are used in process and storage tanks in the applications of the food-processing industry.
    Download
    • E-mail
Document № FT.LR_LM.3_FR
Title Agitateur Latéral de Fond LR / LM
File type .pdf
Summary Les agitateurs latéraux de fond sont utilisés dans les réservoirs de procédés et de stockage destinés à l’industrie alimentai
    Download
    • E-mail
Document № FT.LR_LM.3_IT
Title Agitatore Laterale di Fondo LM/LR
File type .pdf
Summary Gli agitatori laterali di fondo si usano in serbatoi di processo e conservazione nell'industria alimentare.
    Download
    • E-mail
Document № FT.LR_LM.3_PT
Title Agitador Lateral de Fundo LR LM
File type .pdf
Summary Os agitadores laterais de fundo são utilizados em tanques de processamento e de armazenamento na indústria alimentar
    Download
    • E-mail
Document № FT.LR_LM.3_RU
Title Боковая Донная Мешалка LM/LR
File type .pdf
Summary Боковые донные мешалки широко используются как в производственных ёмкостях, так и в ёмкостях для хранения в процессах пищевой промышленности.
    Download
    • E-mail
Document № FT.LR_LM.3_CN
Title 罐底侧进搅拌器 LR / LM
File type .pdf
Summary 罐底侧进式搅拌器在食品加工中用于过程罐和储存罐的搅拌。
    Download
    • E-mail
Document № 20.025.30.01ES
Title INSTRUCCIONES DE INSTALACION, SERVICIO Y MANTENIMIENTO AGITADOR LATERAL DE FONDO LR / LM
File type .pdf
Summary La gama de construcción LM comprende los agitadores laterales de fondo con el eje agitador fijado directamente al motor y, la gama de agitadores LR hace referencia a los agitadores laterales de fondo con el eje agitador fijado directamente al motoreductor.
    Download
    • E-mail
Document № 20.025.30.01EN
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS LR / LM SIDE - ENTRY AGITATORS
File type .pdf
Summary The LM agitator range includes the side-entry agitators with the agitator shaft fixed directly onto the motor and the LR agitator range includes side-entry agitators with the agitator shaft fixed directly onto the gear motor
    Download
    • E-mail
Document № 20.025.30.01FR
Title INSTRUCTIONS D'INSTALLATION, D’ENTRETIEN ET DE MAINTENANCE AGITATEUR LATÉRAL DE FOND LR / LM
File type .pdf
Summary La gamme de construction LM comprend les agitateurs latéraux de fond avec l’axe agitateur fixé directement au moteur et la gamme d’agitateurs LR fait référence aux agitateurs latéraux de fond avec l’axe agitateur fixé directement au motoréducteur
    Download
    • E-mail
Document № 20.025.30.01PT
Title INSTRUÇÕES DE INSTALAÇÃO, SERVIÇO E MANUTENÇÃO AGITADOR LATERAL DE FUNDO LR / LM
File type .pdf
Summary Este manual contém informação sobre receção, instalação, operação, montagem, desmontagem e manutenção para o agitador lateral de fundo LR/LM.
    Download
    • E-mail
