BCI Vertical Agitator

The range of the BCI agitators presents vertical direct motor-driven agitators. These agitators are used in the processes of mixing, dissolution, dispersion and maintenance whenever powerful and high-speed agitation is required in the food processing, cosmetics, pharmaceutical or chemical industries.

The agitators are normally fitted to small volume tanks of up to 1.500 liters for work with low-viscosity products.

Request information

BCI Vertical Agitator

Operating principle

The agitators are normally installed inside the tank either centrally with current deflectors, or offset, so that the offsetting itself prevents the rotation of the stirred product.
The rotation of the propeller makes the fluid flow to the bottom and then up to the surface of the product along the walls of the tank. The effect is promoted if the bottom of the tank is curved.
The Lineflux vigorously agitates the content of the tank promoting the mixing of the product  while the saw tooth propeller promotes its dispersion.

Design and features

Vertical agitator.
Sealing: V-ring and retainer.
Bearing support.
Propeller attached to shaft and shaft attached to the half-shaft by Allen studbolts.
IEC B14 motor, 1500 rpm, IP 55, F-class insulation.
Max. power 0.75 kW.

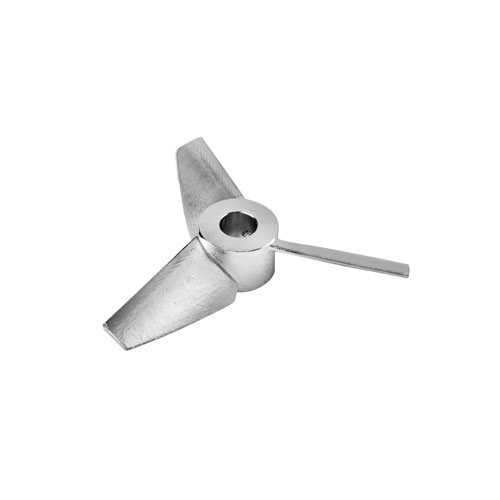

Lineflux propeller (Type 18).

Materials

Parts in contact with the product: AISI 316L
V-ring and retainer: NBR
Bearing support: Aluminum
Surface finish  Ra ≤ 0,8 μm (except Lineflux propeller)

Options

V-ring and retainer: FPM.

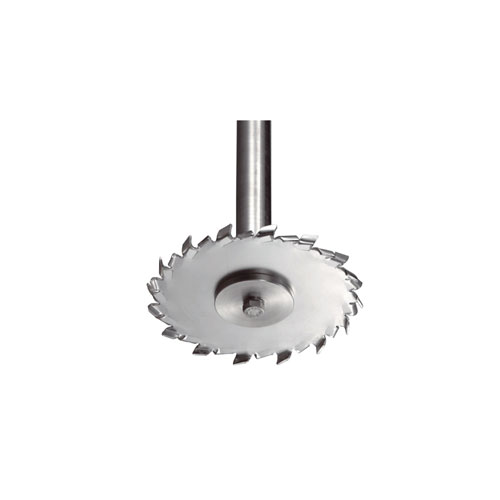

Saw tooth propeller. Welded propeller with Ra ≤ 0,5 µm surface finish.
Motor shroud.
Motors with other protections.
Motors: 950 rpm or 750 rpm.
Pneumatic drive.

Documents

Operating principle
The agitators are normally installed inside the tank either centrally with current deflectors, or offset, so that the offsetting itself prevents the rotation of the stirred product.
The rotation of the propeller makes the fluid flow to the bottom and then up to the surface of the product along the walls of the tank. The effect is promoted if the bottom of the tank is curved.
The Lineflux vigorously agitates the content of the tank promoting the mixing of the product  while the saw tooth propeller promotes its dispersion.
Materials and Options

Parts in contact with the product: AISI 316L
V-ring and retainer: NBR
Bearing support: Aluminum
Surface finish  Ra ≤ 0,8 μm (except Lineflux propeller)

V-ring and retainer: FPM.
Saw tooth propeller. Welded propeller with Ra ≤ 0,5 µm surface finish.
Motor shroud.
Motors with other protections.
Motors: 950 rpm or 750 rpm.
Pneumatic drive.

Document № FT.BCI.3_ES
Title Agitador Vertical BCI
File type .pdf
Summary La gama de la serie BCI son agitadores verticales con motor directo.
    Download
  • E-mail
Document № FT.BCI.3_EN
Title Vertical Agitator BCI
File type .pdf
Summary The range of the BCI agitators presents vertical direct motor-driven agitators.
    Download
  • E-mail
Document № FT.BCI.3_FR
Title Agitateur Vertical BCI
File type .pdf
Summary La gamme de la serie BCI sont des agitateurs verticaux avec moteur direct.
    Download
  • E-mail
Document № FT.BCI.3_DE
Title Vertikalrührwerk BCI
File type .pdf
Summary Bei der Baureihe BCI handelt es sich um Vertikalrührwerke mit Direktmotor
    Download
  • E-mail
Document № FT.BCI.3_IT
Title Agitatore Verticale BCI
File type .pdf
Summary La gamma di agitatori della serie BCI sono agitatori verticali con motore diretto.
    Download
  • E-mail
Document № FT.BCI.3_DA
Title Topmonteret Røreværk BCI
File type .pdf
Summary BCI serien er vertikale røreværker som er direkte motordrevet.
    Download
  • E-mail
Document № FT.BCI.3_RU
Title Вертикальная Мешалка BCI
File type .pdf
Summary Модель BCI представляет собой вертикальную мешалку с приводом, непосредственно от электродвигателя
    Download
  • E-mail
Document № FT.BCI.3_CN
Title 垂直搅拌器
File type .pdf
Summary BCI搅拌器为垂直电机驱动。
    Download
  • E-mail
Document № 20.005.30.01ES
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO AGITADOR VERTICAL BCI
File type .pdf
    Download
  • E-mail
Document № 20.005.30.01EN
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS VERTICAL AGITATOR BCI
File type .pdf
    Download
  • E-mail
Document № 20.005.30.01FR
Title INSTRUCTIONS D’INSTALLATION, DE SERVICE ET ENTRETIEN AGITATEUR VERTICAL BCI
File type .pdf
    Download
  • E-mail
