DIN-FOOD Hygienic Centrifugal Pump

DIN-FOOD Hygienic Centrifugal Pump

Request information

DIN-FOOD Hygienic Centrifugal Pump

The DIN-FOOD pump is a hygienic high capacity centrifugal pump (up to 1000 m³/h) designed to cater for an unfulfilled need in the food-processing and chemical and pharmaceutical industries. The applications of the high-flow centrifugal pump include processes in the brewing, dairy and beverage industries in general, as well as in ultra-filtering processes. It can also be used in the textile industry and in some specific processes in the chemical, cosmetics and pharmaceutical industries.

Request information

DIN-FOOD Hygienic Centrifugal Pump

Operating principle

Housed inside the casing, the impeller rotates in conjunction with the pump shaft. With this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy. This pump is not reversible by a simple reversal of the direction of rotation. The direction of rotation is clockwise when the pump is viewed from the rear side of the motor.

Design and features

Casing with volute manufactured with 8 mm cold-formed plate.
Aseptic flanges according to DIN 11864-2.
Double curvature impeller with blades on the rear side to reduce the axial thrust.
Axial adjustment of the impeller (bare shaft version). Hygienic mechanical seal.
Fully drainable pump.
Designed according to the EHEDG standards.
IEC B3 motors (B35 close-coupled constructions),
IP 55, F-class insulation.

Materials

Parts in contact with pumped media: AISI 316L
Lantern and bearing support: CF8 / GG-22
Gaskets: EPDM according to FDA 177.2600
Mechanical seal: SiC/C/EPDM
Inside surface finish: Ra ≤ 0.8
Outside surface finish: satin

Options

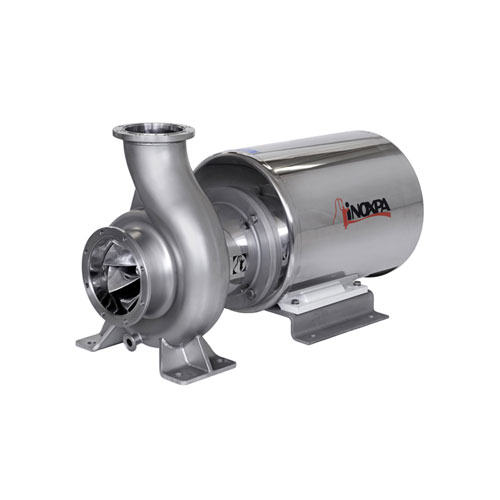

Close-coupled construction for models 250.
Mechanical seal in SiC/SiC for abrasive materials.
Tandem type mechanical seal and pressurized double mehcanical seal.
Gaskets: FPM and PTFE.
Industrial finish (DIN-TEX).
Motor shroud.
Motors with additional protection.
Stainless steel base plate.
ATEX version available.

Documents

Operating principle

Housed inside the casing, the impeller rotates in conjunction with the pump shaft. With this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy. This pump is not reversible by a simple reversal of the direction of rotation. The direction of rotation is clockwise when the pump is viewed from the rear side of the motor.

Materials and Options

Parts in contact with pumped media: AISI 316L
Lantern and bearing support: CF8 / GG-22
Gaskets: EPDM according to FDA 177.2600
Mechanical seal: SiC/C/EPDM
Inside surface finish: Ra ≤ 0.8
Outside surface finish: satin

Close-coupled construction for models 250.
Mechanical seal in SiC/SiC for abrasive materials.
Tandem type mechanical seal and pressurized double mehcanical seal.
Gaskets: FPM and PTFE.
Industrial finish (DIN-TEX).
Motor shroud.
Motors with additional protection.
Stainless steel base plate.
ATEX version available.

Document № FT.DIN-FOOD.2_ES
Title Bomba Centrífuga DIN FOOD
File type .pdf
Summary La bomba DIN-FOOD es una bomba centrífuga higiénica de gran caudal diseñada según los requerimientos de EHEDG
    Download
  • E-mail
Document № FT.DIN-FOOD.2_EN
Title Hygienic Centrifugal Pump DIN-FOOD
File type .pdf
Summary The DIN-FOOD pump is a hygienic high capacity centrifugal pump Designed according to the EHEDG standards
    Download
  • E-mail
Document № FT.DIN-FOOD.2_FR
Title Pompe Centrifuge Hygiénique DIN-FOOD
File type .pdf
Summary La pompe DIN-FOOD est une pompe centrifuge hygiénique à grand débit (jusqu'à 1000 m³/h) conçue pour couvrir un besoin pas couvert jusqu'à présent dans l'industrie alimentaire et chimico-pharmaceutique.
    Download
  • E-mail
Document № FT.DIN-FOOD.2_IT
Title Pompa Centrifuga Igienica DIN FOOD
File type .pdf
Summary La pompa DIN-FOOD è una pompa centrifuga igienica di grande portata (fino a 1000 m³/h) disegnata per ricoprire una necessità non coperta fino a questo momento nell'industria alimentare e chimico-farmaceutica.
    Download
  • E-mail
Document № FT.DIN-FOOD.2_PT.pdf
Title Bomba Centrífuga DIN Higiénica DIN-FOOD
File type .rar
    Download
  • E-mail
Document № FT.DIN-FOOD.2_DE
Title DIN-Hygiene-Kreiselpumpe DIN-FOOD
File type .pdf
Summary Die DIN-FOOD ist eine Hygiene-Kreiselpumpe mit großer Durchflussmenge (bis 1000 m³/h), die entwickelt wurde, um einem bisher in Chemie-, Pharma- und Lebensmittelindustrie nicht abgedeckten Bedarf nachzukommen. Design nach EHEDG-Anforderungen.
    Download
  • E-mail
Document № FT.DIN-FOOD.2_RU
Title Гигиеничный Центробежный Насос DIN-FOOD
File type .pdf
Summary Насос DIN-FOOD представляет собой гигиеничный высокопроизводительный центробежный насос (до 1000 м³/ч), спроектированный в ответ на невосполненные потребности пищевой, химической и фармацевтической промышленности.
    Download
  • E-mail
Document № FT.DIN-FOOD.2_CN
Title 卫生级DIN离心泵 DIN FOOD
File type .pdf
Summary DIN-Food 系列离心泵是卫生级标准的离心泵,属于大流量的离心泵(最大流 量可到1000 m³/h).
    Download
  • E-mail
Document № 01.110.30.00ES_RevD
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO DIN-FOOD
File type .pdf
Summary Este manual contiene información sobre la recepción, instalación, operación, montaje, desmontaje y mantenimiento para la bomba DIN-FOOD.
    Download
  • E-mail
Document № 01.110.30.00EN_RevD
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS DIN-FOOD
File type .pdf
Summary This manual contains information about the receipt, installation, operation, assembly, disassembly and maintenance of the DINFOOD pump.
    Download
  • E-mail
Document № 01.110.30.00FR_RevD
Title INSTRUCTIONS D’INSTALLATION, DE SERVICE ET D’ENTRETIEN DIN-FOOD
File type .pdf
Summary Ce manuel contient des informations concernant la réception, l’installation, le fonctionnement, le montage, le démontage et l’entretien de la pompe DIN-FOOD.
    Download
  • E-mail
Document № 01.110.30.00DE_RevD
Title ANWEISUNGEN ZU INSTALLATION, BETRIEB UND WARTUNG DIN-FOOD
File type .pdf
Summary Die vorliegende Betriebsanleitung enthält Angaben zur Abnahme, Installation, Betrieb, Aufbau, Abbau und Wartung der Pumpe DIN-FOOD.
    Download
  • E-mail
Document № 01.110.30.00RU
Title РУКОВОДСТВО ПО УСТАНОВКЕ, ЭКСПЛУАТАЦИИ И ТЕХНИЧЕСКОМУ ОБСЛУЖИВАНИЮ НАСОС DIN-FOOD
File type .pdf
Summary Данное руководство содержит информацию о приемке, установке, работе, монтаже, демонтаже и техническом обслуживании насоса DIN-FOOD.
    Download
  • E-mail
Document № 110.DIN_FOOD.rar
Title 110.DIN_FOOD.rar
File type .rar
    Download
  • E-mail
Document № 01.110.12.0020
Title CURVAS CARACTERÍSTICAS / PERFORMANCE CURVES DIN-FOOD
File type .pdf
    Download
  • E-mail
