PharmaValve Radial Diaphragm Valve

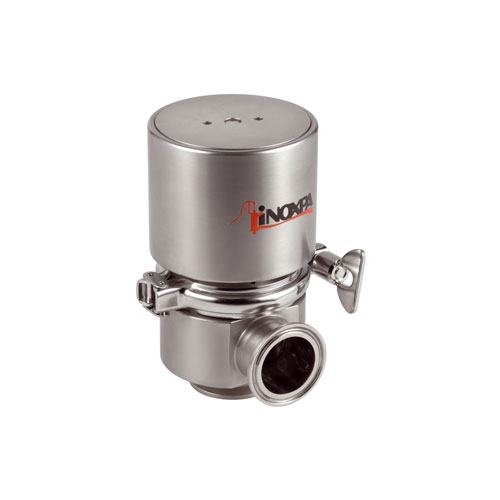

The Pharmavalve is a radial diaphragm valve, manually or pneumatically operated, specially designed for critical processes where any contamination, dead leg zones or leakage are to be avoided. Thus, the valve is suitable for hygienic and aseptic processes in the pharmaceutical and bio-pharmaceutical industries as well as in clean rooms.

Request information

PharmaValve Radial Diaphragm Valve

Operating principle

The Pharmavalve combines the features of the traditional piston valves (manually or automatically actuated) with the aseptic safety of the common diaphragm valves.
Due to the axial movement of the piston, the diaphragm gets closer to the body closing or opening the valve. The valve piston is housed inside the diaphragm.
The diaphragm provides double sealing of the valve that makes it more hygienic and safer.

Design and features

Hygienic design according to the EHEDG specifications.
Completely drainable.
Zero dead leg design.
Easy cleaning.
Easy assembling/disassembling and replacement of the diaphragm (bonnet and actuator are connected by clamp).
Long diaphragm durability.
Easy manifolding.
Traceability of the components.
Suitable for CIP/SIP processes.
Standard connections: Clamp OD.

Materials

Parts in contact with the product: AISI 316L
Diaphragm: Silicone (components according to FDA177.2600 and USP class VI)
Internal surafce finish: mirror polish, Ra≤0,5µm
External surface finish: satin

Options

Pneumatic actuator: single acting (normally closed) or double acting.
PTFE (except ½” size) or silicone diaphragm.
Different body configurations.

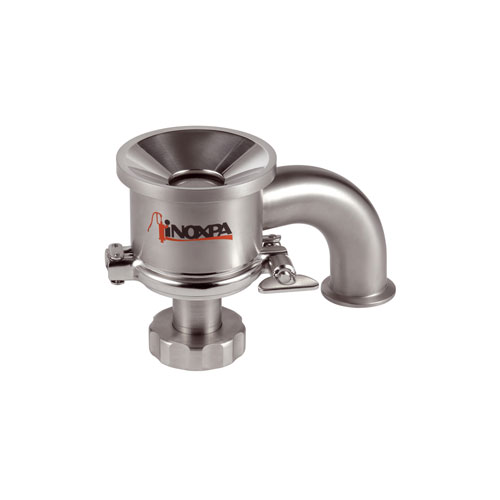

Tank bottom valve.
One or two proximity switches.
Control by external solenoid valves.
Butt welding connections (inches).
Material and surface finish certificates.

Documents

Operating principle

The Pharmavalve combines the features of the traditional piston valves (manually or automatically actuated) with the aseptic safety of the common diaphragm valves.
Due to the axial movement of the piston, the diaphragm gets closer to the body closing or opening the valve. The valve piston is housed inside the diaphragm.
The diaphragm provides double sealing of the valve that makes it more hygienic and safer.

Materials and Options

Parts in contact with the product: AISI 316L
Diaphragm: Silicone (components according to FDA177.2600 and USP class VI)
Internal surafce finish: mirror polish, Ra≤0,5µm
External surface finish: satin

Pneumatic actuator: single acting (normally closed) or double acting.
PTFE (except ½” size) or silicone diaphragm.
Different body configurations.
Tank bottom valve.
One or two proximity switches.
Control by external solenoid valves.
Butt welding connections (inches).
Material and surface finish certificates.

Document № FTphPharmavalve.2_ES
Title Válvula de Diafragma Radial Pharmavalve
File type .pdf
Summary La Pharmavalve es una válvula de diafragma de tipo radial, de accionamiento manual o neumático diseñada para procesos críticos donde no se admiten posibles contaminaciones
    Download
  • E-mail
Document № FTphPharmavalve.2_EN
Title Radial Diaphragm Valve Pharmavalve
File type .pdf
Summary The Pharmavalve is a radial diaphragm valve, manually or pneumatically operated, specially designed for critical processes where any contamination
    Download
  • E-mail
Document № FTphPharmavalve.2_DE
Title Radialmembranventil PharmaValve
File type .pdf
Summary Das Pharmaventil ist ein manuell oder pneumatisch betätigtes Radialmembranventil
    Download
  • E-mail
Document № FTphPharmavalve.2_RU
Title Радиальный Мембранный Клапан Pharmavalve
File type .pdf
Summary Pharmavalve представляет собой радиальный мембранный клапан с ручным или пневматическим приводом.
    Download
  • E-mail
Document № 10.320.30.00ES_revA
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO PHARMAVALVE
File type .pdf
Summary Este manual de instrucciones contiene aquellas indicaciones básicas que se deberán cumplir durante la instalación, puesta en marcha y mantenimiento.
    Download
  • E-mail
Document № 10.320.30.00EN_revA
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS PHARMAVALVE
File type .pdf
Summary This manual contains basic instructions which should be fulfilled during the installation, starting and maintenance.
    Download
  • E-mail
Document № 10.320.30.00FR_revA
Title INSTRUCTIONS D’INSTALLATION, DE SERVICE ET DE MAINTENANCE PHARMAVALV
File type .pdf
Summary Ce manuel d’instructions contient les indications de base à appliquer pendant l’installation, la mise en service et l’entretien.
    Download
  • E-mail
Document № 10.320.30.00RU
Title ИНСТРУКЦИИ ПО УСТАНОВКЕ, ЭКСПЛУАТАЦИИ И ОБСЛУЖИВАНИЮ PHARMAVALVE
File type .pdf
    Download
  • E-mail
