INNOVA F Tank Bottom Single Seat Valve

Request information

INNOVA F Tank Bottom Single Seat Valve

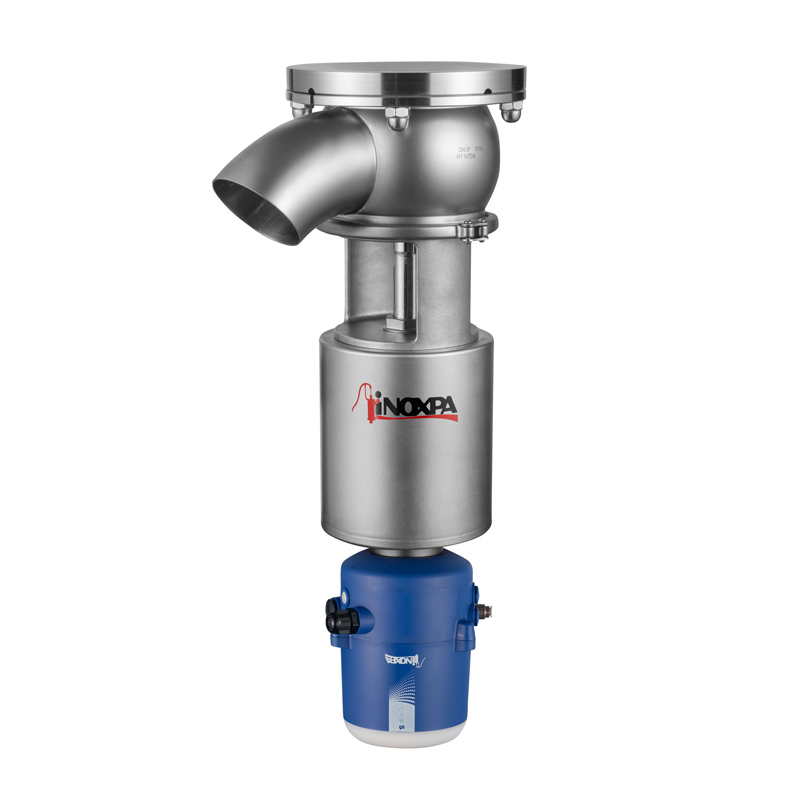

The INNOVA F valve is a shut-off single seat valve designed specifically for installation at the tank bottom for use in hygienic applications.

Request information

INNOVA F Tank Bottom Single Seat Valve

Design and features

More compact space-saving design.

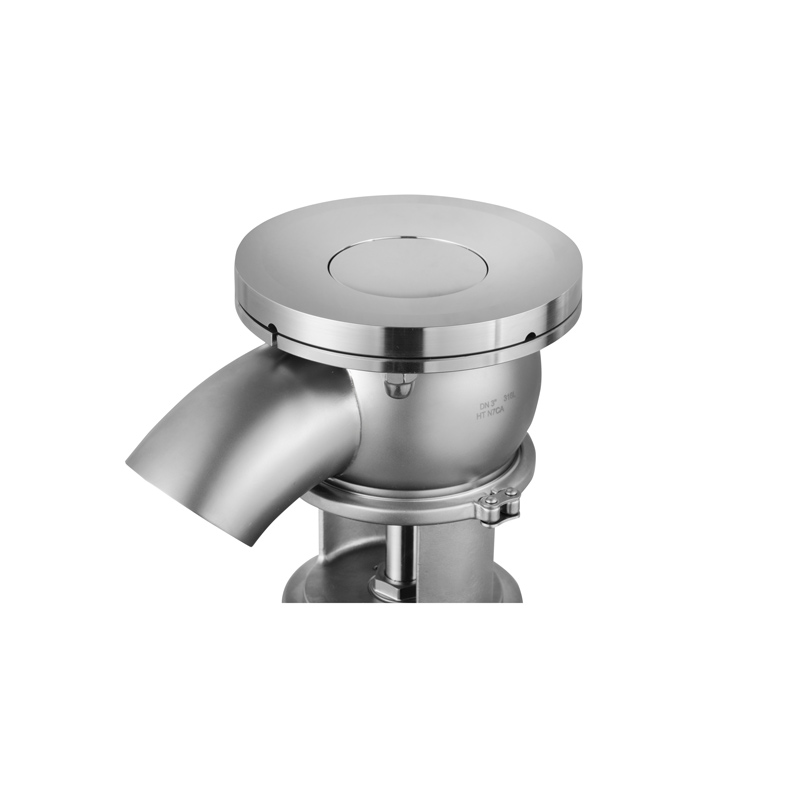

Specific body with a welded flange.
45º elbow outlet to enable welding.
Opening towards the inside of the valve.
Radial type seal design.
Single-acting actuator.
Normally closed valve.
Open lantern allows visual inspection of shaft sealing.

Materials

Parts in contact with the product AISI 316L (1.4404)
Other stainless steel parts AISI 304 (1.4301)
Gasket EPDM

Surface finish:
Internal Bright polish Ra ≤ 0,8 μm
External Matt

Available sizes:
DIN 11850 DN 25 - DN 100
ASME BPE OD 1" - OD 4"

Connections: Weld

Options

Manual actuator.
Gaskets: FPM, HNBR.
Other connection types.
C-TOP and C-TOP+ control units.
External position sensors.
Surface finish: Ra ≤ 0,5 μm.

Documents

Operating principle
Materials and Options

Parts in contact with the product AISI 316L (1.4404)
Other stainless steel parts AISI 304 (1.4301)
Gasket EPDM

Surface finish:
Internal Bright polish Ra ≤ 0,8 μm
External Matt

Available sizes:
DIN 11850 DN 25 - DN 100
ASME BPE OD 1" - OD 4"

Connections: Weld

Manual actuator.
Gaskets: FPM, HNBR.
Other connection types.
C-TOP and C-TOP+ control units.
External position sensors.
Surface finish: Ra ≤ 0,5 μm.

Documents
Document № 10.248.33.01ES
Title Válvula de Simple Asiento de Fondo de Tanque INNOVA F
File type .pdf
    Download
  • E-mail
Document № 10.248.33.01EN
Title Tank Bottom Single Seat Valve INNOVA F
File type .pdf
    Download
  • E-mail
Document № 10.248.33.01FR
Title Tank Bottom Single Seat Valve INNOVA F
File type .pdf
    Download
  • E-mail
Document № 10.248.33.01IT
Title Valvola a Singola Sede per Fondo Serbatoio INNOVA F
File type .pdf
    Download
  • E-mail
Document № 10.248.33.01DE
Title Tankboden Einsitzventil INNOVA F
File type .pdf
    Download
  • E-mail
Document № 10.248.33.01RU
Title Односедельный Донный Клапан INNOVA F
File type .pdf
    Download
  • E-mail
Document № 10.248.30.04MU
Title Guía rápida de instalación - Quick installation guide - Guide d’installation rapide - Краткое руководство по монтажу INNOVA F
File type .pdf
    Download
  • E-mail
Document № 10.248.30.03ES_revA
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO VÁLVULA DE FONDO DE TANQUE INNOVA F
File type .pdf
Summary La válvula de fondo de tanque INNOVA F es una válvula de simple asiento y accionamiento neumático diseñada para drenar el fluido de un tanque en aplicaciones higiénicas
    Download
  • E-mail
Document № 10.248.30.07ES
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO VÁLVULA DE FONDO DE TANQUE INNOVA F - ANEXO ATEX
File type .pdf
    Download
  • E-mail
Document № 10.248.30.03EN_revA
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS TANK BOTTOM VALVE INNOVA F
File type .pdf
Summary The INNOVA F valve is pneumatically actuated seat valve designed for draining out fluid from tank in hygienic applications.
    Download
  • E-mail
Document № 10.248.30.07EN
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS TANK BOTTOM VALVE INNOVA F - ANNEX ATEX
File type .pdf
    Download
  • E-mail
Document № 10.248.30.03FR_revA
Title INSTRUCTIONS RELATIVES À L’INSTALLATION, À LA MISE EN SERVICE ET À LA MAINTENANCE VANNE DE FOND DE CUVE INNOVA F
File type .pdf
Summary La vanne de fond de cuve INNOVA F est une vanne simple siège à commande pneumatique conçue pour drainer le fluide d’une cuve dans applications hygiéniques
    Download
  • E-mail
Document № 10.248.30.07FR
Title INSTRUCTIONS RELATIVES À L’INSTALLATION, À LA MISE EN SERVICE ET À LA MAINTENANCE VANNE DE FOND DE CUVE INNOVA F - ANNEXE ATEX
File type .pdf
    Download
  • E-mail
Document № 10.248.30.03RU_revA
Title ИНСТРУКЦИИ ПО УСТАНОВКЕ, ЭКСПЛУАТАЦИИ И ОБСЛУЖИВАНИЮ ДОННЫЙ КЛАПАН INNOVA F
File type .pdf
    Download
  • E-mail
