C-TOP+ Control Unit

Request information

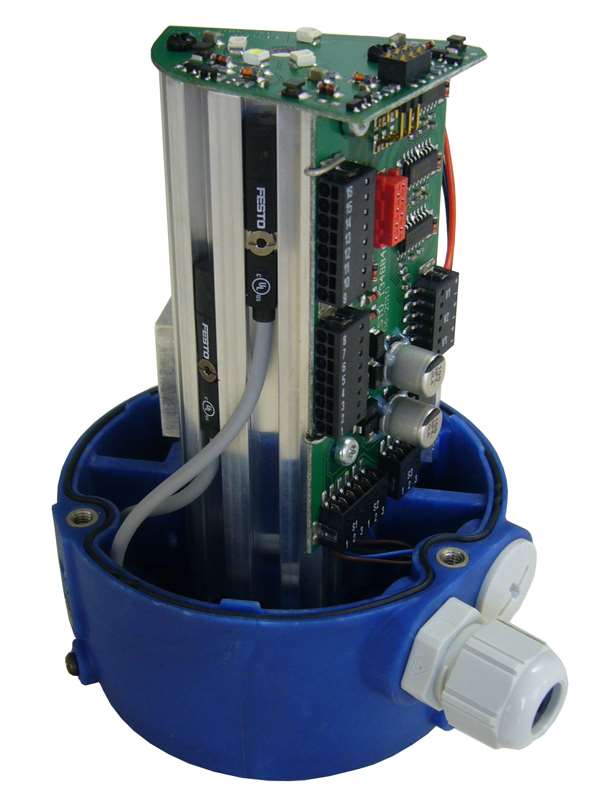

C-TOP+ Control Unit

The C-TOP+ is a pneumatic control unit designed to ensure an optimum control over the INOXPA process valves. It is compatible with most PLC (Programmable Logic Controllers) automated systems with digital communication.
C-TOP+ can be installed to any current process valve in the food-processing, beverage and biopharmaceutical industries.

Request information

C-TOP+ Control Unit

Operating principle

The C-TOP+ control unit incorporates indication and command devices to control pneumatically operated process valves.

This unit as a single piece has the following features:
• Pneumatic and electric control over the valve
• Position sensors with feedback

The control units are fitted to the pneumatic actuator. It receives signals from a control panel or from a PLC to actuate the valves and sends signals to the PLC or to the control panel to communicate the status/position of the valve.
C-TOP+ unit contains three LEDs (depending on the configuration) constantly indicating the operating status of the valve. A fourth LED (white) indicates whether the operating voltage supply is connected.

Design and features

The design of the C-TOP+ unit is simple, modular and resistant that guarantees the maximum flexibility. Depending on the product version it has up to three 3/2 solenoid valves (NC) and three sensors. If necessary, an additional external sensor and an additional external solenoid valve can be connected.
The sensors are actuated contact-free by a magnet attached to the control rod. The sensor can be magnetoresistive or magnetic reed type and it is activated without contact wiith a magnet in the shaft control.

The C-TOP+ units can be set up according to the customer’s requirements.

Materials

End cap: Polypropylene
Housing: Reinforced polypropylene
Plate: Reinforced polypropylene
Seals: EPDM
Screws: Stainless steel

Documents

Operating principle

The C-TOP+ control unit incorporates indication and command devices to control pneumatically operated process valves.

This unit as a single piece has the following features:
• Pneumatic and electric control over the valve
• Position sensors with feedback

The control units are fitted to the pneumatic actuator. It receives signals from a control panel or from a PLC to actuate the valves and sends signals to the PLC or to the control panel to communicate the status/position of the valve.
C-TOP+ unit contains three LEDs (depending on the configuration) constantly indicating the operating status of the valve. A fourth LED (white) indicates whether the operating voltage supply is connected.

Materials and Options

End cap: Polypropylene
Housing: Reinforced polypropylene
Plate: Reinforced polypropylene
Seals: EPDM
Screws: Stainless steel

Document № FT.CTOP+.2_ES
Title Cabezal de Control CTOP+
File type .pdf
Summary El C-TOP+ es un cabezal de control neumático diseñado para asegurar un control óptimo de las válvulas de proceso de INOXPA.
    Download
  • E-mail
Document № FT.CTOP+.2_EN
Title Control Unit C-TOP+
File type .pdf
Summary The C-TOP+ is a pneumatic control unit designed to ensure an optimum control over the INOXPA process valves.
    Download
  • E-mail
Document № FT.CTOP+.2_FR
Title Boitier de contrôle CTOP+.
File type .pdf
Summary Le C-TOP+ est un boitier de contrôle pneumatique conçu pour assurer la commande et le contrôle optimale des vannes process d’INOXPA.
    Download
  • E-mail
Document № FT.CTOP+.2_IT
Title Testata di Controllo CTOP+
File type .pdf
Summary Il C-TOP+ è una testata di controllo pneumatico progettata per assicurare un ottimocontrollo delle valvole di processo INOXPA.
    Download
  • E-mail
Document № FT.CTOP+.2_RU
Title Контрольное Устройство C-TOP+
File type .pdf
Summary C-TOP+ представляет собой контрольное устройство, предназначенное для обеспечения оптимального контроля за клапанами INOXPA.
    Download
  • E-mail
Document № FT.C-TOP+15.1_ES
Title Cabezal de Control C-TOP+’15
File type .pdf
Summary El C-TOP+ es un cabezal de control neumático diseñado para asegurar un control óptimo de las válvulas de proceso de INOXPA.
    Download
  • E-mail
Document № FT.C-TOP+15.1_EN
Title Control Unit C-TOP+’15
File type .pdf
Summary The C-TOP+ is a pneumatic control unit designed to ensure an optimum control over the INOXPA process valves.
    Download
  • E-mail
Document № FT.C-TOP+15.1_FR
Title Boitier de Contrôle C-TOP+15
File type .pdf
Summary Le C-TOP+ est un boitier de contrôle pneumatique conçu pour assurer la commande et le contrôle optimale des vannes process d’INOXPA
    Download
  • E-mail
Document № FT.C-TOP+15.1_DE
Title Steuereinheit C-TOP+’15
File type .pdf
Summary Der C-TOP+ ist eine pneumatische Steuereinheit, die eine optimale Steuerung der INOXPA-Prozessventile gewährleistet
    Download
  • E-mail
Document № FT.C-TOP+15.1_IT
Title Testata di Controllo C-TOP+’15
File type .pdf
Summary Il C-TOP+ è una testata di controllo pneumatico progettata per assicurare un ottimocontrollo delle valvole di processo INOXPA
    Download
  • E-mail
Document № FT.C-TOP+15.1_PT.pdf
Title Cabeçote de Controlo C-TOP+15
File type .pdf
Summary O C-TOP+ é um cabeçote de controlo pneumático concebido para assegurar um controlo ótimo das válvulas de processo da INOXPA
    Download
  • E-mail
Document № FT.C-TOP+15.1_RU
Title Контрольное Устройство C-TOP+’15
File type .pdf
Summary C-TOP+ представляет собой контрольное устройство, предназначенное для обеспечения оптимального контроля за клапанами INOXPA.
    Download
  • E-mail
Document № 8046722d4
Title C-TOP+ Instrucciones de utilización / Operating instructions / Notice d'utilisation / Bedienungsanleitung
File type .pdf
    Download
  • E-mail
