C-TOP S / C-TOP S AS-I Control Unit

Request information

C-TOP S / C-TOP S AS-I Control Unit

The C-TOP S control unit can adapt to any INOXPA actuator, and both efficiently and individually automate pneumatically driven process valves. These include: butterfly, ball, diaphragm and single or double seat valves.

Request information

C-TOP S / C-TOP S AS-I Control Unit

Operating principle

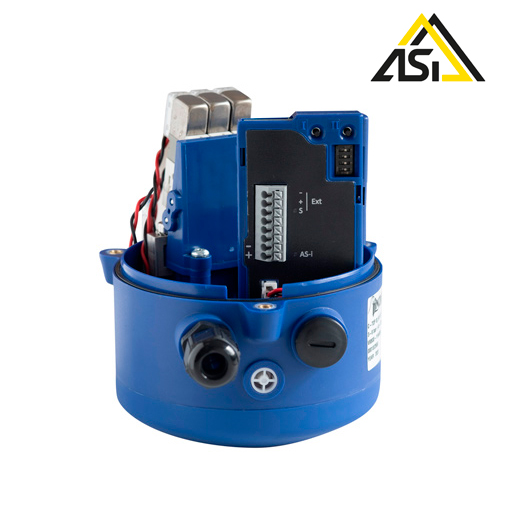

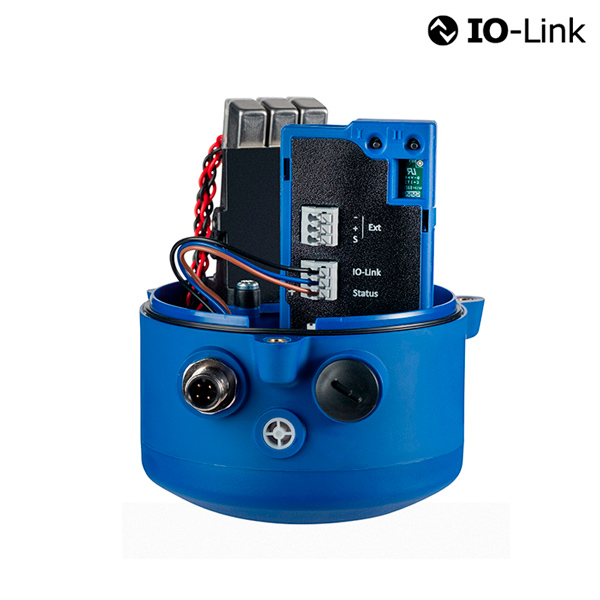

The control unit contains a linear detection electronic module comprised of several hall sensors.
A PLC systems sends signals to the solenoid valves through the unit’s electronic module to control and operate the main valve. At the same time, the electronic module sends return signals to the PLC to indicate the valve’s current position.
The C-TOP S is configured using the electronic module’s buttons.
A specific colour for each valve position lights up to indicate the valve’s current status at all times. The unit’s coloured lights can be configured using the DIP switches that are also found on the electronic module.

Design and features

The C-TOP S installs easily onto the top of the valve’s actuator.
AUTOTUNE mode enables quick and simple configuration.
Line detection using hall sensors.
Use of up to three solenoid valves possible. One solenoid valve is required for single-acting control valves, two for double-acting control valves, and three for mixproof valves.
External sensor connection possible.
360° view of lights indicating valve status.

Materials

Plastic parts PA6
Nuts and bolts A2
Gaskets NBR
Pneumatic connections Nickel-plated brass

Documents

Operating principle

The control unit contains a linear detection electronic module comprised of several hall sensors.
A PLC systems sends signals to the solenoid valves through the unit’s electronic module to control and operate the main valve. At the same time, the electronic module sends return signals to the PLC to indicate the valve’s current position.
The C-TOP S is configured using the electronic module’s buttons.
A specific colour for each valve position lights up to indicate the valve’s current status at all times. The unit’s coloured lights can be configured using the DIP switches that are also found on the electronic module.

Materials and Options

Plastic parts PA6
Nuts and bolts A2
Gaskets NBR
Pneumatic connections Nickel-plated brass

Documents
Document № FT.C-TOP_S.2_ES.pdf
Title Cabezal de Control C-TOP S
File type .pdf
    Download
  • E-mail
Document № FT.C-TOP_S.2_EN.pdf
Title Control Unit C-TOP S
File type .pdf
    Download
  • E-mail
Document № FT.C-TOP_S.2_FR.pdf
Title Boîtier de Commande C-TOP S
File type .pdf
    Download
  • E-mail
Document № FT.C-TOP_S.2_IT.pdf
Title Testata di Controllo C-TOP S
File type .pdf
    Download
  • E-mail
Document № FT.C-TOP_S.2_RU.pdf
Title Контрольное Устройство C-TOP S
File type .pdf
    Download
  • E-mail
Document № 10.426.30.01MU_RevA
Title Guía rápida de instalación / Quick installation guide / Guide d’installation rapide / Краткое руководство по монтажу C-TOP S
File type .pdf
    Download
  • E-mail
Document № 10.426.30.03ES
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO CABEZAL DE CONTROL C-TOP S
File type .pdf
    Download
  • E-mail
Document № 10.426.30.03EN
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS CONTROL HEAD C-TOP S
File type .pdf
    Download
  • E-mail
Document № 10.426.30.03FR
Title INSTRUCTIONS RELATIVES À L’INSTALLATION, À LA MISE EN SERVICE ET À LA MAINTENANCE TÊTE DE COMMANDE C-TOP S
File type .pdf
    Download
  • E-mail
Document № 10.426.30.03RU
Title ИНСТРУКЦИИ ПО УСТАНОВКЕ, ЭКСПЛУАТАЦИИ И ОБСЛУЖИВАНИЮ КОНТРОЛЬНОЕ УСТРОЙСТВО C-TOP S
File type .pdf
    Download
  • E-mail
Document № C.Valves.ES.0221.pdf
Title VÁLVULAS DE MARIPOSA Y BOLA
File type .pdf
    Download
  • E-mail
Document № C.Valves.EN.0221.pdf
Title BUTTERFLY AND BALL VALVES
File type .pdf
    Download
  • E-mail
Document № C.Valves.FR.0321.pdf
Title VANNES PAPILLON ET À BOULE
File type .pdf
    Download
  • E-mail
Document № C.Valves.IT.0221.pdf
Title VALVOLE A FARFALLA E A SFERA
File type .pdf
    Download
  • E-mail
Document № C.Valves.PT.0321.pdf
Title VÁLVULAS DE BORBOLETA E DE ESFERA
File type .pdf
    Download
  • E-mail
Document № C.Valves.RUS.0221.pdf
Title ДИСКОВЫЕ ЗАТВОРЫ И ШАРОВЫЕ КРАНЫ
File type .pdf
    Download
  • E-mail
